Permanent Magnet Brushless DC Motor

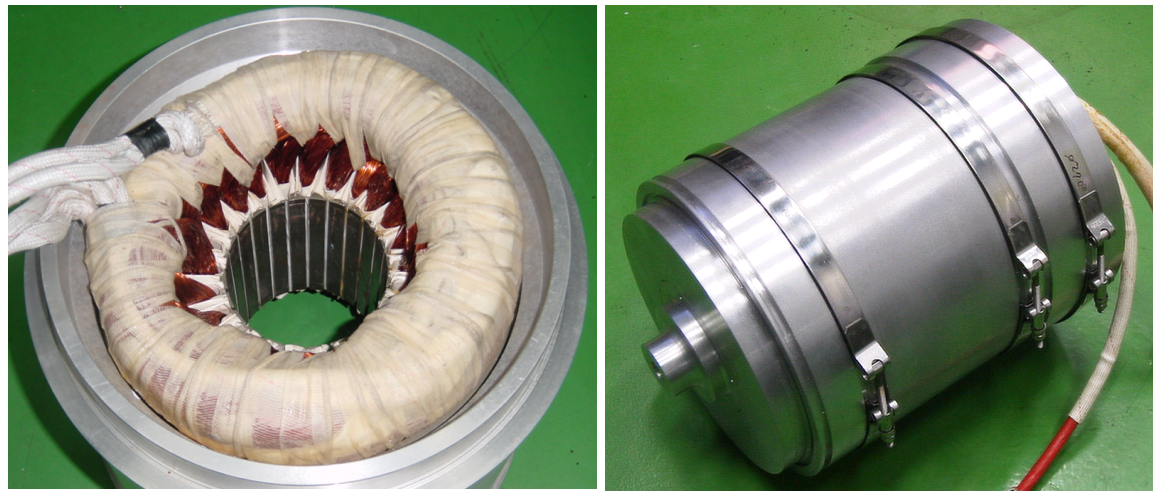

Description of Permanent Magnet Brushless DC Motor

PM&BLDC MOTOR

[ Our company's BLDC/PM MOTOR uses air suspension bearings, and the rotating shaft can rotate 10,000 to 200,000 times per minute (10,000-200,000 RPM), providing ultra-high speed operation (providing high energy density). Our company's BLDC/PMMOTOR is not only large in capacity but also small in volume.

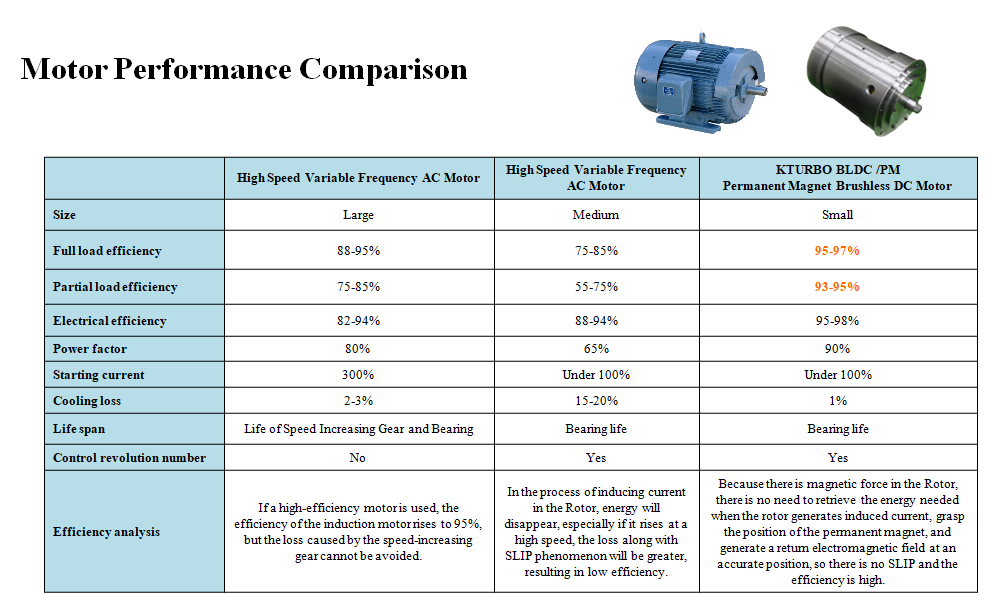

[ The efficiency of BLDC/PM MOTOR of our company is 97 ~ 98%, and the efficiency of partial load operation is 95%. Judging from the efficiency of the motor alone, it can save about 10% of energy when running at full load and more than 30% when running at partial load.

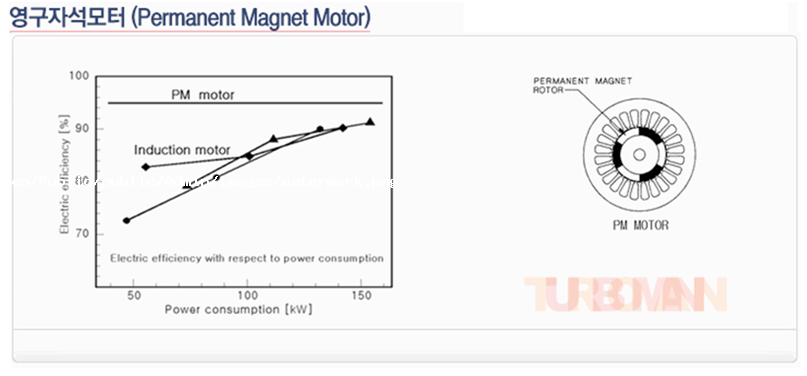

PM/BLDC MOTOR Efficiency Table

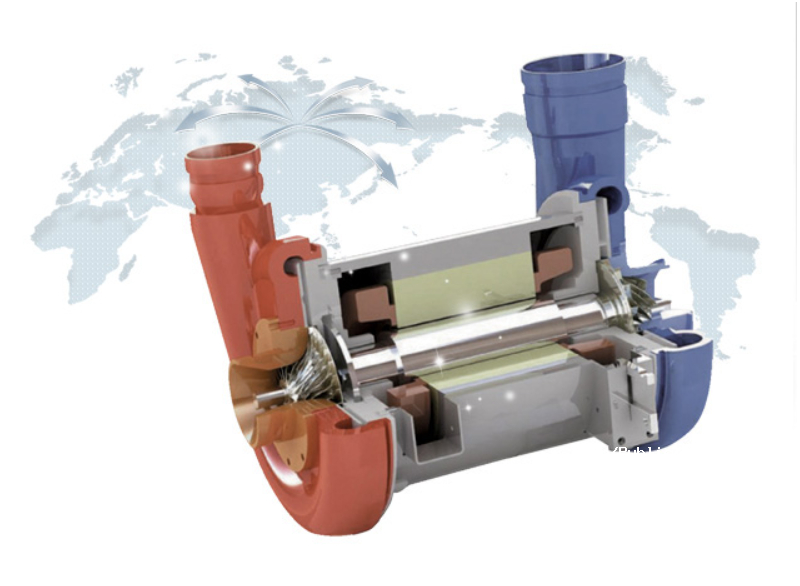

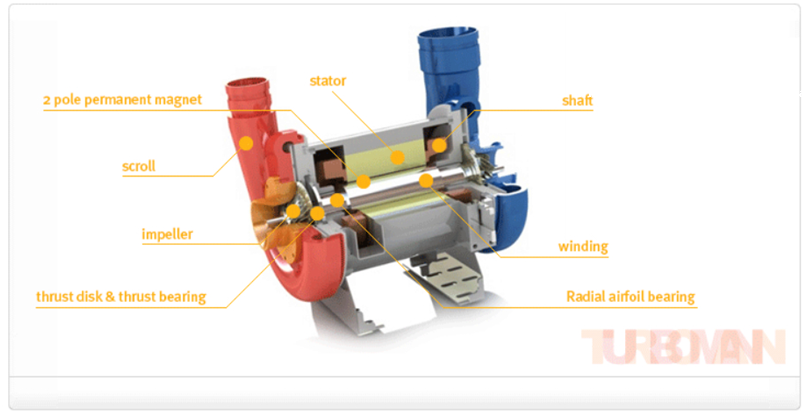

PM/BLDC MOTOR Structure
